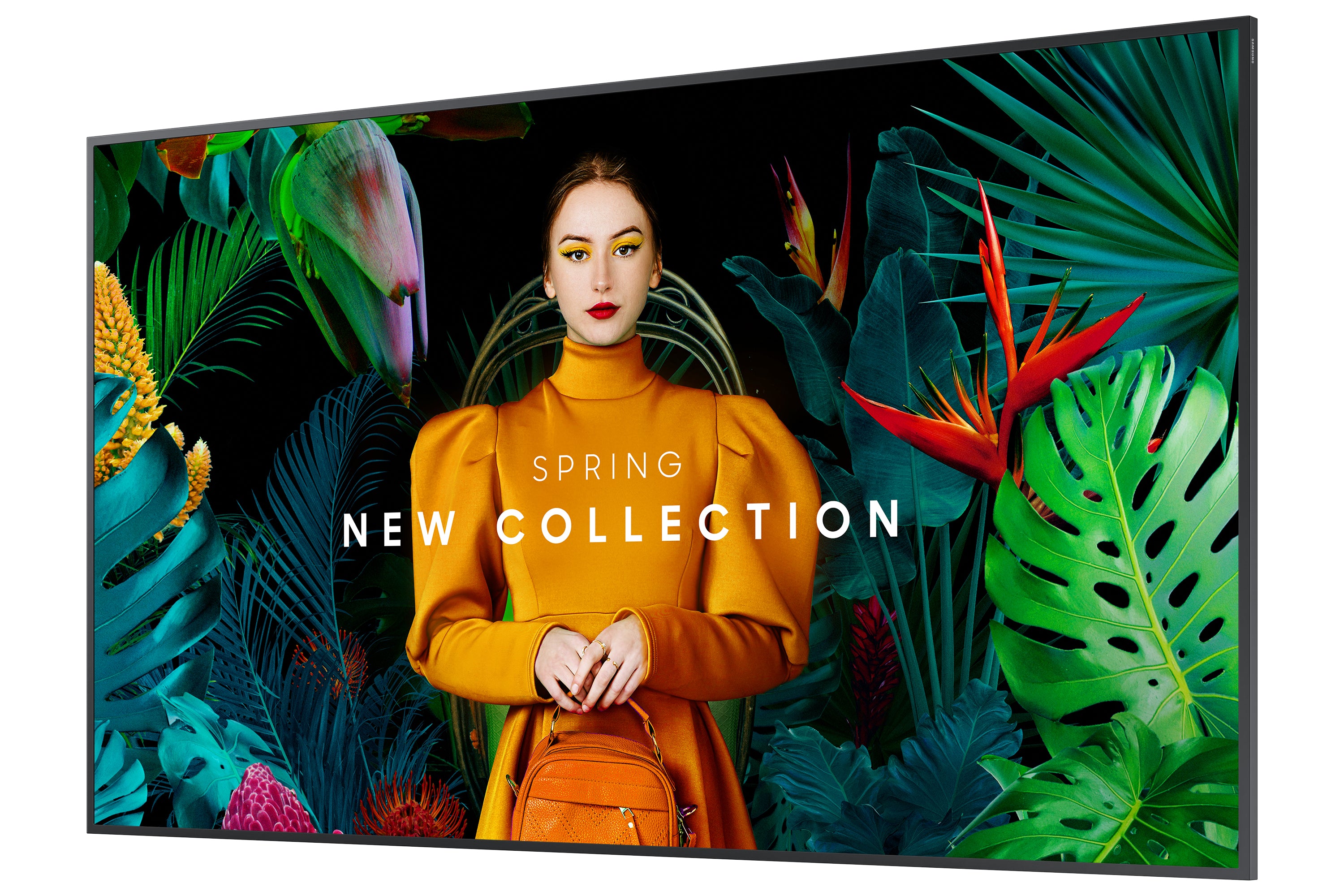

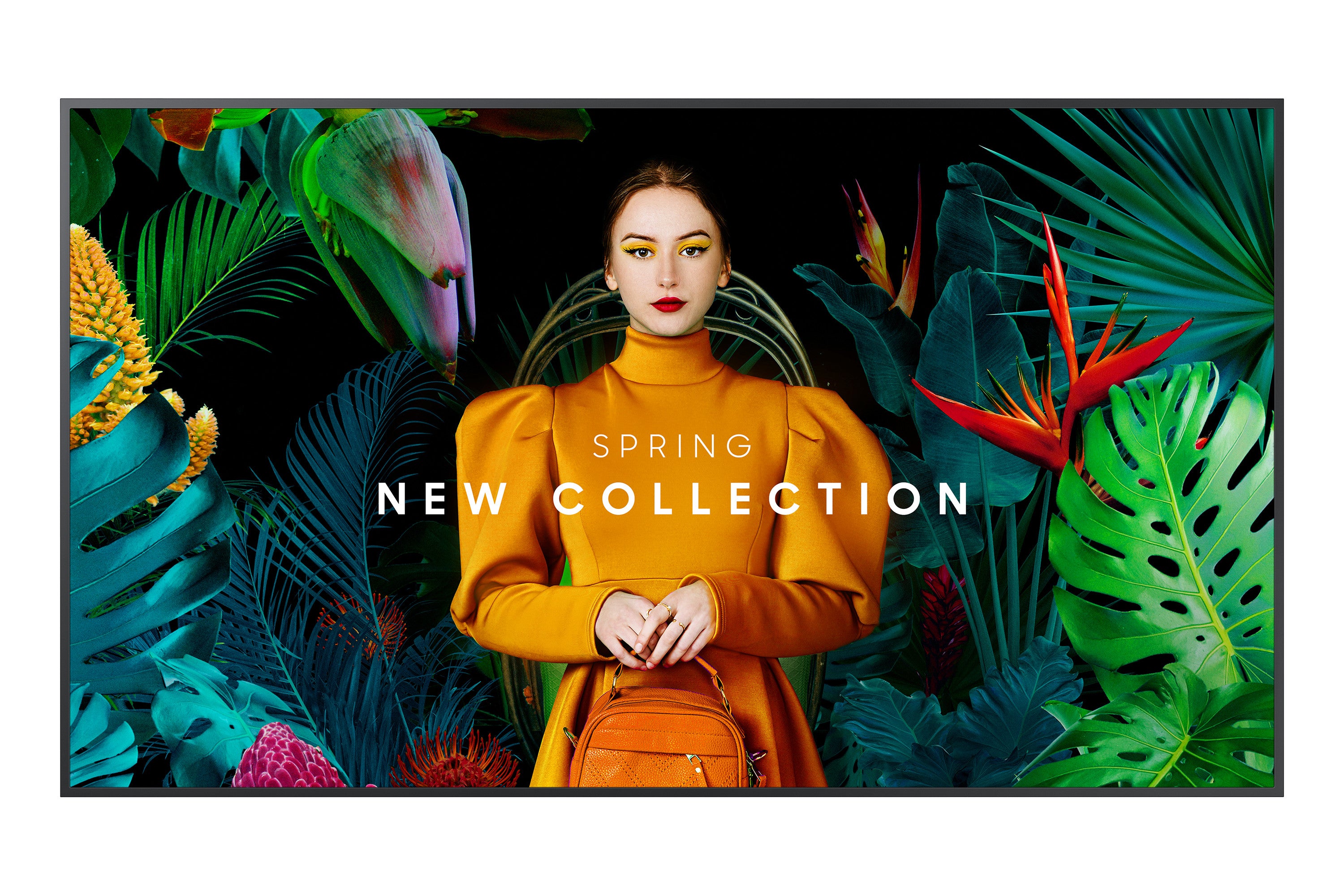

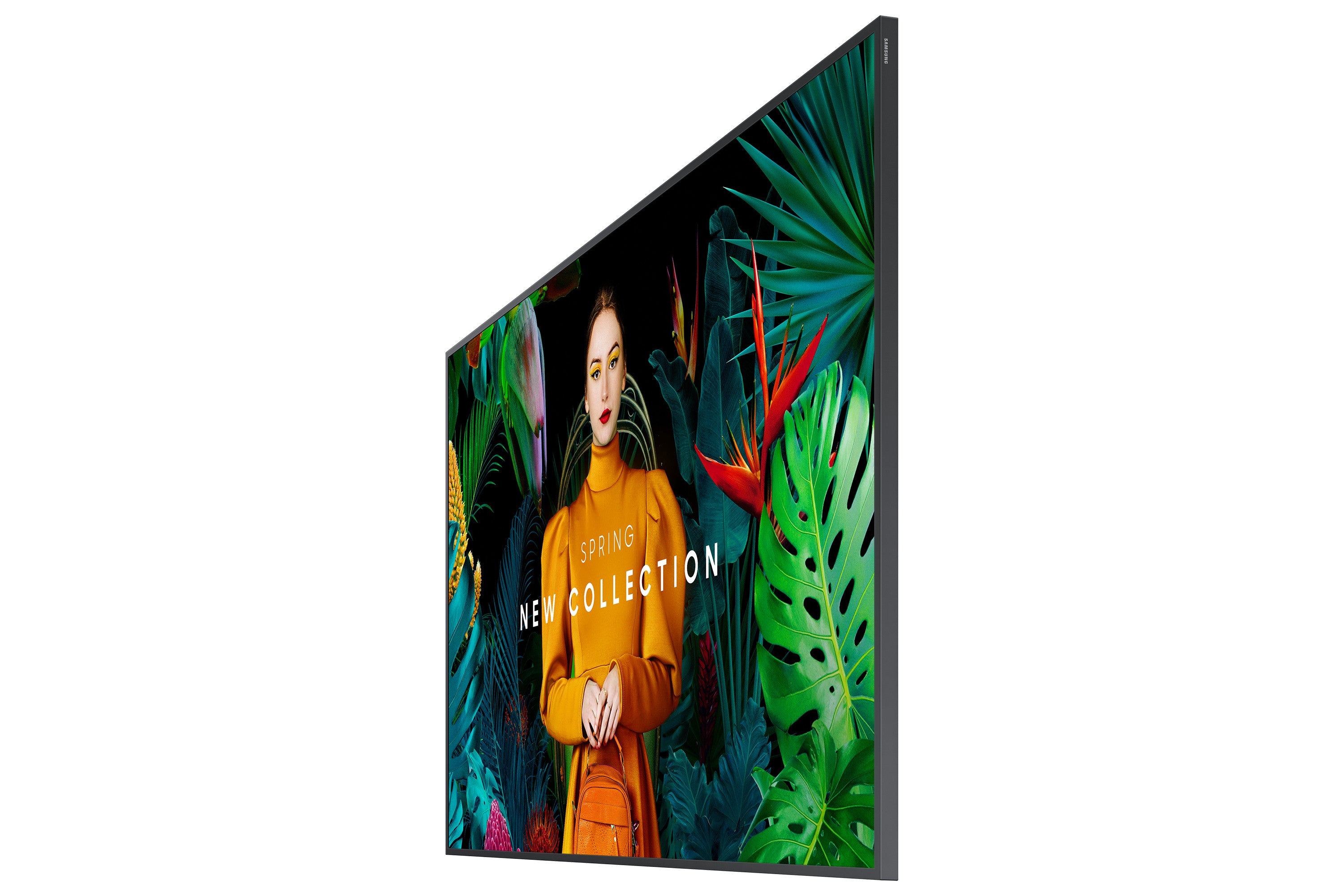

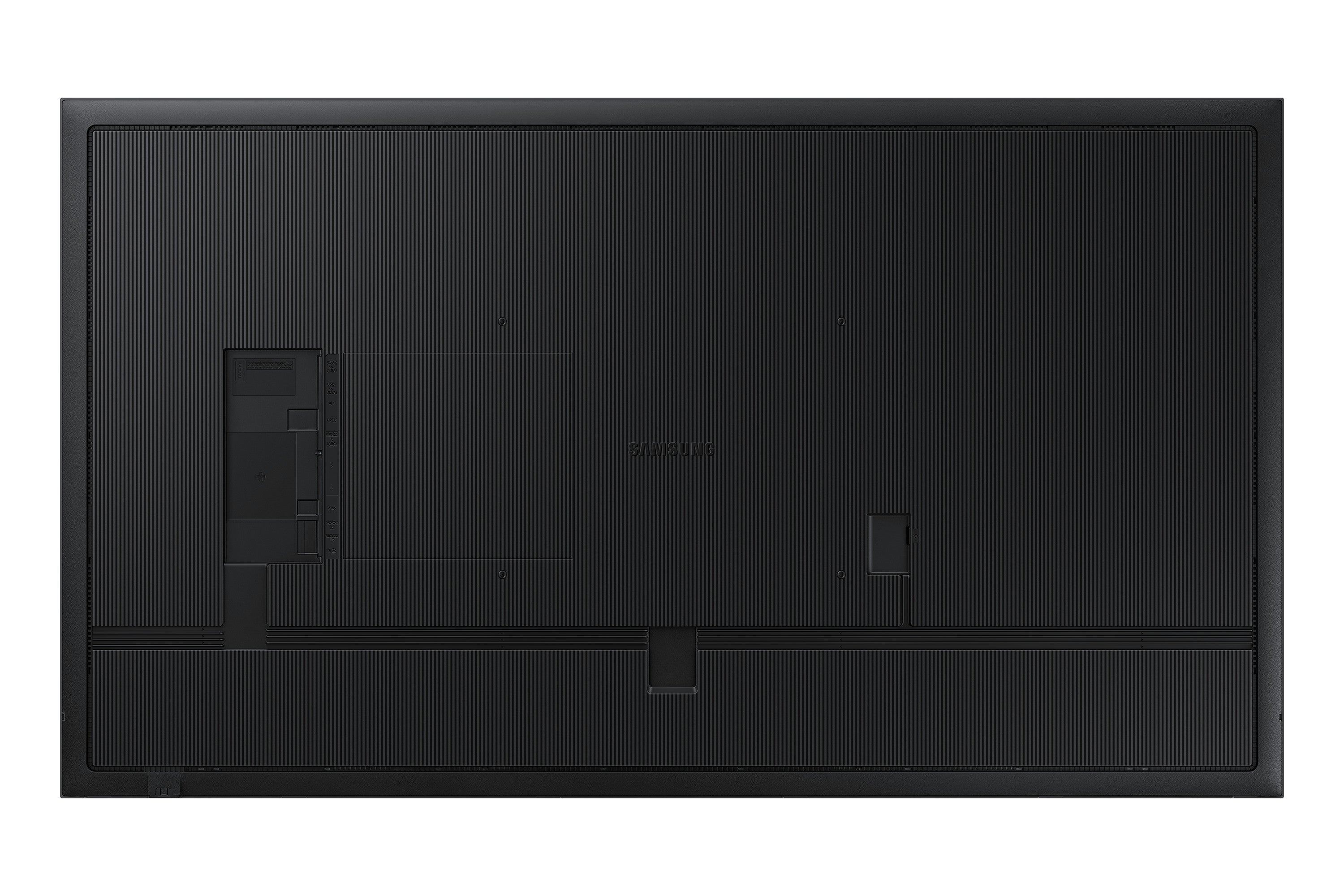

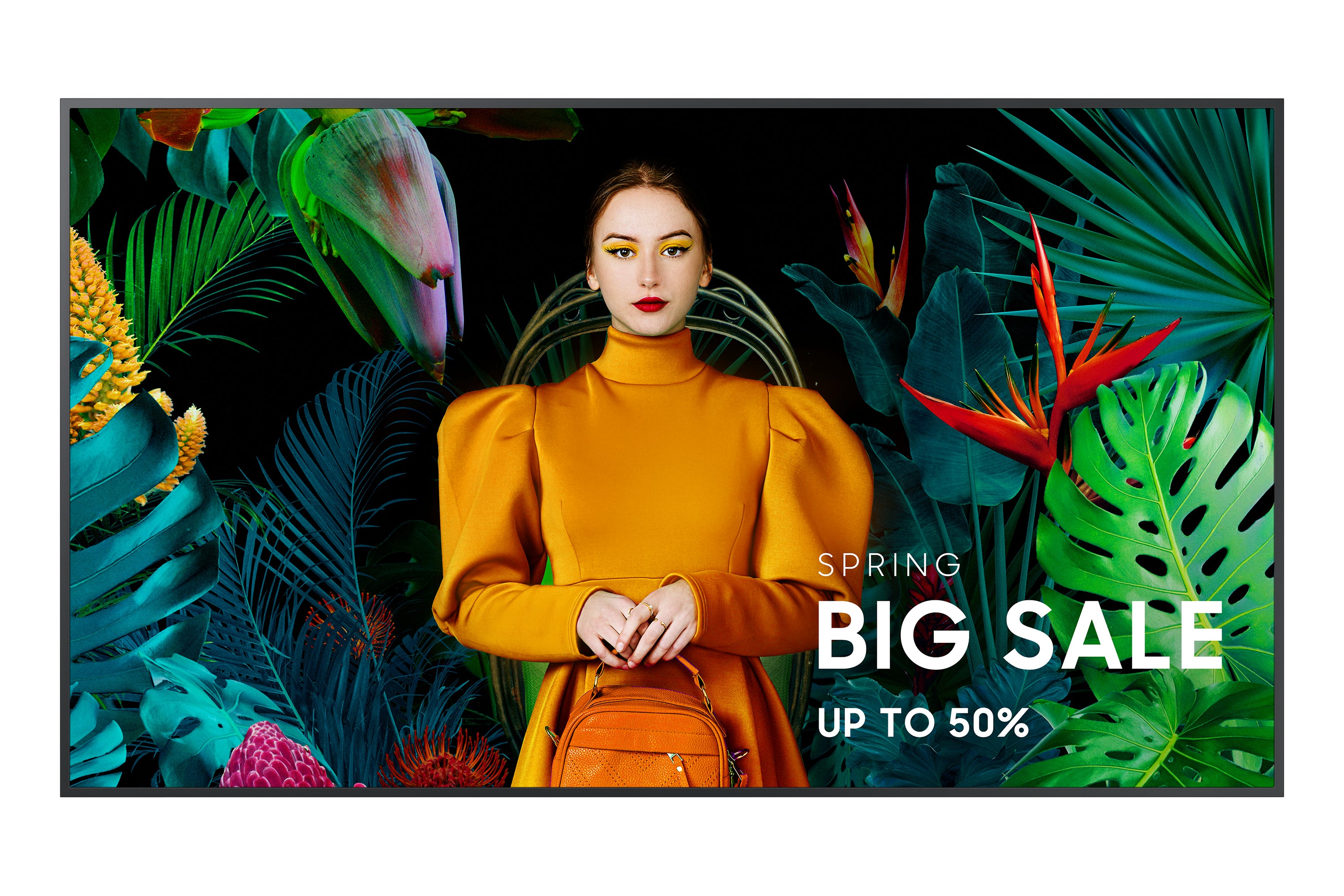

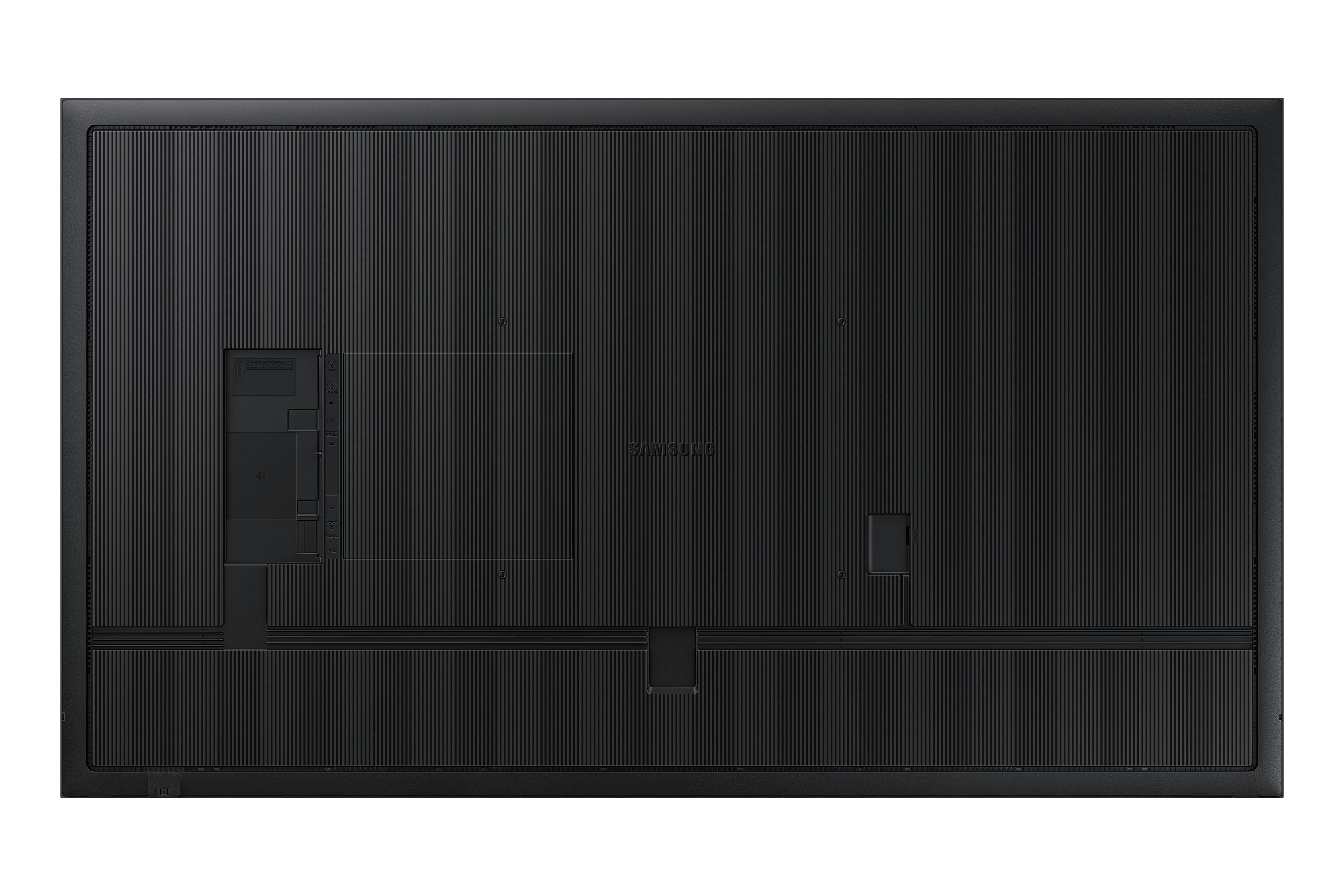

SAMSUNG QH75C Digital signage flat 75 inch LCD Wi-Fi 4K Ultra HD LH75QHCEBGCXEN
Specifications
| Display |
| Panel type | VA |
| LED backlight | Yes |
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.429 x 0.429 mm |
| Display diagonal (metric) | 189 cm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 48 - 75 Hz |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 72% |
| Ports & interfaces |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Design |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Design |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.34 cm |
| Bezel width (side) | 1.34 cm |
| Bezel width (top) | 1.34 cm |
| Bezel colour | Charcoal Black |
| Performance |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power |
| Power consumption (typical) | 275 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system |
| Operating system installed | Tizen |
| Operating system version | 7.0 |
| Weight & dimensions |
| Display width | 1682.3 mm |
| Display depth | 28.5 mm |
| Display height | 960.4 mm |
| Display weight | 34.6 kg |
| Packaging data |
| Package width | 1839 mm |
| Package depth | 180 mm |
| Package height | 1113 mm |
| Package volume | 45300 cm³ |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates |
| Certification | Class B 60950-1, 62368-1 |
| Features |
| Suitable for indoor use | Yes |
