Bright, vivid content on a large scalable screen
Enjoy large-scale presentations with sharp, clear text, as well as engaging images and video content on screen sizes up to 320 inches. The 3800-lumen light output combined with a high contrast ratio of 16,000:1 delivers excellent visual performance, even in brightly lit rooms.
Years of uninterrupted meetings
Thanks to a lamp with a lifespan of 17,000 hours in Eco mode.
Network and wireless (optional)

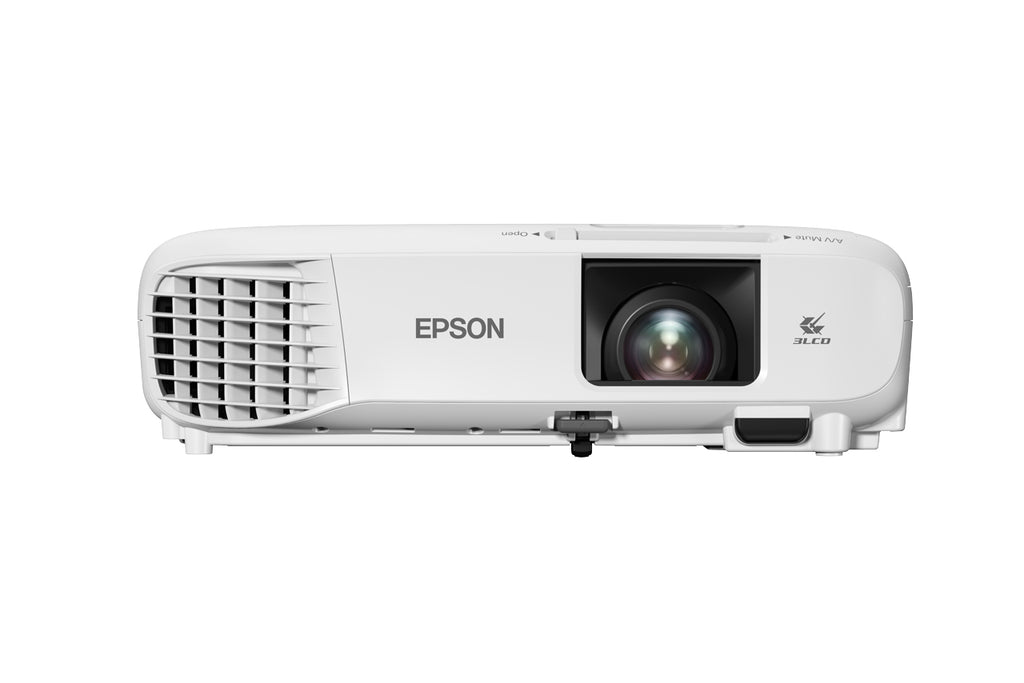

Network capabilities (via RJ45) and optional wireless connectivity allow the EB-W49 to be integrated into a corporate network or later upgraded for wireless device access (optional accessory required).
Flexible installation and placement
Automatic vertical and manual horizontal keystone correction increase flexibility regarding projector placement in the room for distortion-free images, while the wide optical zoom provides additional flexibility.
High sound quality
This projector features a built-in 5-watt speaker so audio content is clearly audible without the need for additional external speakers.
| Feature |
Specification |
| Projection system |
3LCD (RGB liquid crystal shutter) |
| Resolution |
WXGA (1280 × 800), 16:10 (1,024,000 pixels) |
| Aspect ratio |
16:10 |
| Color brightness |
3,800 lumens (IDMS15.4) |
| White brightness |
3,800 lumens (ISO 21118:2020) |
| Contrast ratio |
16,000:1 |
| Lamp |
UHE 210 W, 8,000 h (normal), 17,000 h (eco) |
| Throw ratio |
1.30–1.56:1 |
| Projection size |
33″ – 320″ (0.91 – 9.07 m) |
| Zoom |
1.0–1.2× (manual) |
| Keystone correction |
Vertical ±30° (auto), horizontal ±30° (manual) |
| Color depth |
10 bit, ~1.07 billion colors |
| Vertical refresh |
100–120 Hz (2D) |
| Connections |
2× HDMI, 2× VGA in, VGA out, USB‑A/B, composite, LAN, RS‑232C, audio in/out, optional Wi‑Fi |
| USB display function |
Image/sound via USB |
| Software |
EasyMP Network Projection, Epson Projector Management |
| Speaker |
5 W mono |
| Noise (fan) |
37 dB (normal) / 28 dB (eco) |
| Power consumption |
286 W normal, 180 W eco, 327 W peak, 0.3 W standby |
| Voltage |
AC 100–240 V, 50/60 Hz |
| Dimensions |
302 × 249 × 87 mm |
| Weight |
2.7 kg |
| Temperature |
Operating: 5–35 °C; Storage: –10–60 °C |
| Humidity |
Operating: 20–80 %; Storage: 10–90 % |
| Security |
Kensington lock, cables, WLAN unit lock |
| Warranty |
36 months Carry-in; lamp: 36 months or 1,000 h |
